Volumetric Divider

Volumetric Divider

The volumetric divider is fitted with all latest safety and technological features for their intended professional use. All parts which come into touch with dough are made of stainless steel, automatic lubrication system, a contribution to hygiene and optimum ease of operation together with their very practical loading level. Perfectly regular weight of dough pieces. Adapted for soft dough (French type).

It can be used at varying speed for production of 900  to 4000  pieces of dough per hour, thus adapting themselves perfectly to your requirements.

The flour duster is mandatory if there is no rounding device on the out feed conveyor belt.



Tugkan offers 3 type of Volumetric Divider.

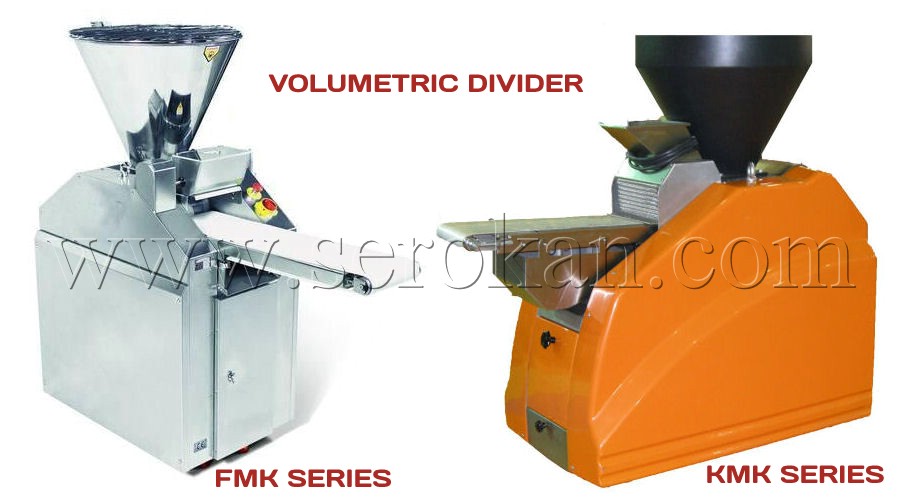

FMKVD Model

KMKVD Model

FMKVD2 Double Piston Model

Construction

Standard

• Motor power 1.5 kW

• Stainless steel hopper

• Output: 900 to 1800 pcs/h

• Mounted on castors

• Loading height 1540 mm for open hopper

• 380 V  50 Hz N+PE

Hopper 100 Kg

Epoxy painted  wall pannel

Volumetric Divider

Models

FMKVD - KMKVD

50 gr - 250 gr

FMKVD - KMKVD

100  gr - 600 gr

FMKVD - KMKVD

200 gr - 1100 gr

FMKVD2

30 gr - 150 gr

FMKVD2

60 gr - 200 gr

FMKVD2

150 gr - 600  gr

Optional

• Dough Piece Counter

• Stainless Steel Body

Adjustable Speed

• Teflon Coated Hopper

Motorized Weight Adjustment

Hopper 150 Kg
