Conical Rounder

    sitemap

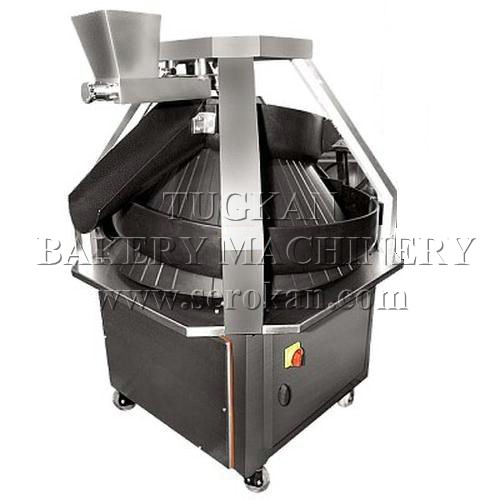

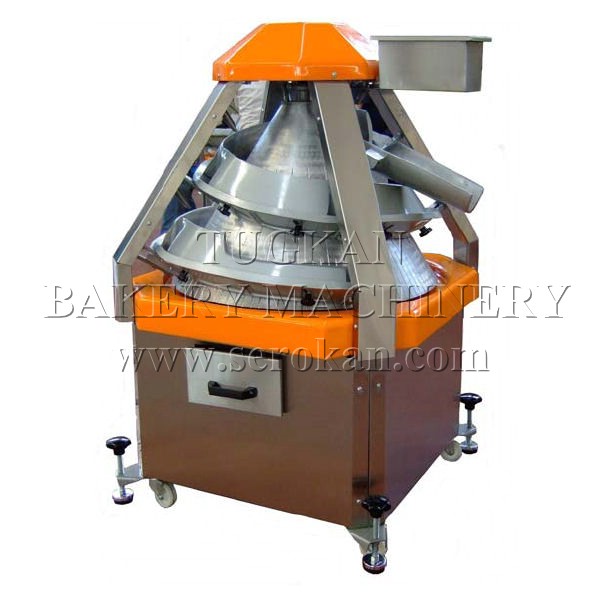

Conical Rounder

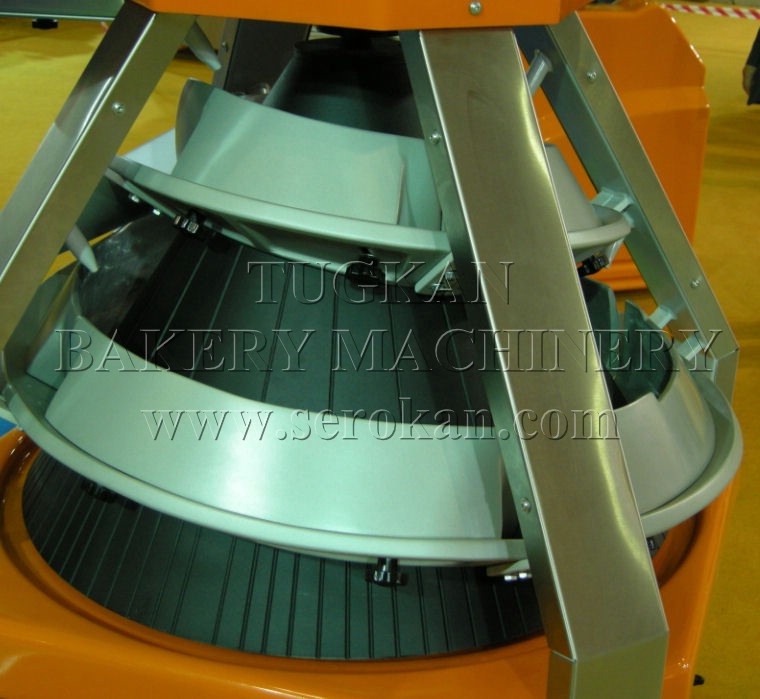

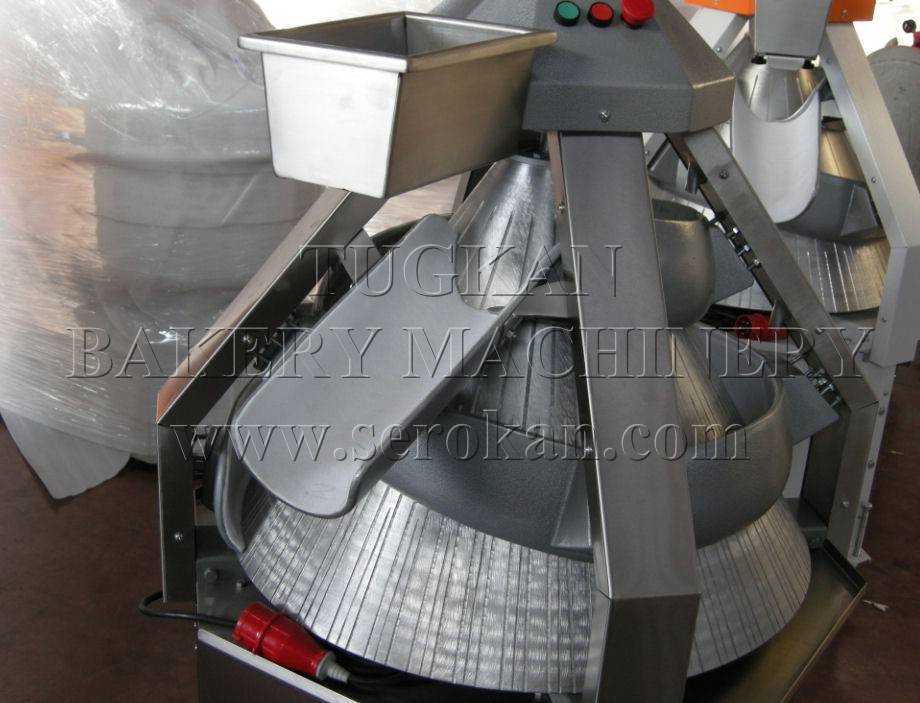

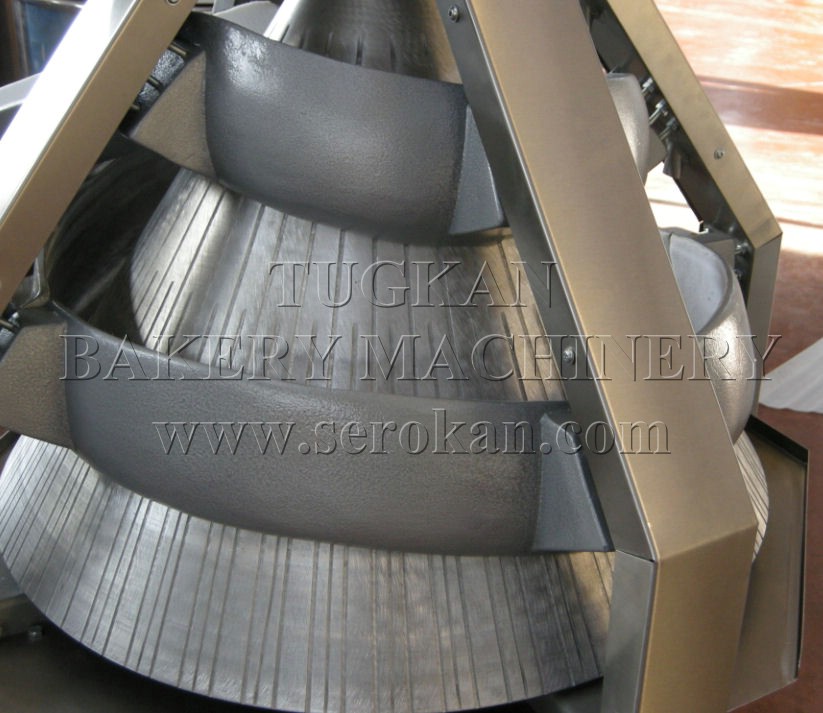

Conical rounder machine shapes the dough with  a cone made of aluminium and the aluminium rounding spirals.The dough coming from volumetric dough divider drops to rounder channels and  reaches to the proofing machine being rounded to proofer



At the meantime, the dough is prevented to stick to the discharge with integral flour dusting system. Also optionally blowing hot or cold air  can be added to conical rounder to prevent to stick on the drum.



Conical Rounder KMKas specially manufactured machine to shape the dough between 40-1200 gr.  by means of adjustable spirals can be produced as per the demand.





Construction

Standard

• Motor power 1.1 kW

• Aluminium Cone

• Aluminium Spiral

• Mounted on castors

• Integral Flour Duster

• Epoxy painted  wall pannel

• 380 V  50 Hz N+PE

Dough Rounder

Models

30-150 gr 50-300 gr 100-600 gr 200-1200 gr
Optional

• Adjustable Spirals

• Stainless Steel Body

• Adjustable Speed

• Teflon Coated Cone

• Teflon Coated Spirals
